Climate Change 2

I am not expert on different effects of climate change. But I do know a good smattering of random things. More importantly, several of my coworkers in grad school are at the forefront of the research of a lot of things here.

Here are some events relating to climate change, with indications of how much I think I know about it. So, for these things, I will have a title, than a 5 star rating for my level of confidence in the material I am presenting. 5/5 means I think I know a whole lot, 4/5 means I know what a grad student in a related field should know, and I probably am friends with one of the experts in the field, 3/5 means I am conversant in it, 2/5 means I understand it a little and have seen the math, 1/5 means I have heard of it and think it is worth mentioning.  It is important to note that anything rated 1 or 2 should be taken with a grain of salt, and should absolutely not be cited. I don't really know much about these things, other than they are possible.

Melting Ice Sheets -  3/5

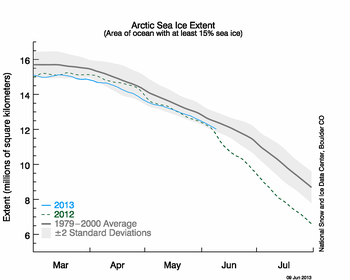

A snapshot of the Arctic sea ice extent from June 2013. Area of sea ice has decreased over time

A snapshot of the Arctic sea ice extent from June 2013. Area of sea ice has decreased over time

It seems like every summer, the news programs get all abuzz over the Arctic ice extent. No matter which way it goes, they get excited. The extent is literally the surface area that this ice covers. But as we discussed on an early post about thermodynamics, the amount of heat energy you have to pump into a system does not relate to its surface area, but instead to its volume, since volume is directly related to mass. And the story of ice volume yearly minimum is more telling: the minimum ice volume in the summer has decreased by a factor of nearly 50% over the past 5 years. In other words, half of the summer ice is gone.

The areal extent of ice seems somewhat erratic. The volume measurement of arctic ice over the last 5 years is a much more important measurement

What happens when the ice goes away?

Albedo changes - everyone knows about this, so I won't rate my knowledge here. In the last post, I mentioned that ice reflects 90% of light energy, and water absorbs 90%. If the sea ice disappears, more heat can be absorbed and trapped by the Earth, causing warming to happen more quickly.

Shortwave radiation is high-energy radiation from the sun. Longwave is infrared that comes off from Earth. Ice reflects shortwave (sun) radiation.

Stronger temperature changes in high latitudes

As the planet warms, the warming will be more felt in the high latitudes (ie the Arctic and Antarctic). As you can guess, this will have feedbacks with the ice melting and albedo changes.

Projected temperature increases show that the high latitudes will have far more profound temperature increases under climate change.

The habitats of the Arctic will present another positive feedback - 5/5

This is what I study directly. I don't model this, I measure it. Well, my team does. I am a small part of that. In normal biomes, plants pull CO2 from the atmosphere and turn it into plant matter. A lot of this is leaves or grass and such. They then die, fall to the ground, and get consumed by bacteria or oxidized to become CO2 again. So most of the CO2 consumed by plants and such is recycled back into the atmosphere.

In cold places, it is different. Moss and grass grow in the summer (no trees, permafrost prevents them from ever taking root). Much of this after it dies does not get recycled to CO2 again,cause the freeze already happened and it is too cold for the stuff to become CO2. This has happened in the Arctic for 300,000 years or more. In the first 3 meters of Arctic soil, there is enough undigested carbon to double the amount of CO2 in the atmosphere. Obviously it won't all release at once, and most of it may not release. But even if a part of a percent started being released per year, it would match mankind's CO2 emissions. This hasn't started happening yet, but if it did, we'd want to work fast to reverse it if we hope to prevent climate change from jumping into a strong positive feedback loop that we cannot control.

More on this later, when I describe my actual research and what I do day to day.

Weather patterns change - 1/5

I can barely even hand-wave at this one. The ocean strongly influences atmospheric circulation patterns. Hurricanes, for instance, always form over the ocean. This is because the ocean has a ton of thermal momentum (it doesn't change temperature at the same rate as the atmosphere) and the top layer of it is well-mixed, so even if the top few inches warm up, it will rapidly be cooled off by the water beneath. The atmosphere has much less thermal momentum, mostly because it is far less dense than water. So what happens when you have an ice cap? The water-atmosphere interaction is cut off. The water is sealed away from the atmosphere, and suddenly the ocean stops controlling wind patterns and such. And then very large-scale atmosphere-driven wind patterns can develop without ocean waters impeding it. This leads to wacky weather. Like increased snow in winter at mid-latitudes, and much more variable weather. This is why we now call it climate change instead of global warming. Some places will get cooler, but the variability of weather patterns will increase because of this sort of event. Like in Boston on May 2th where we broke the record low, and then on may 29th we broke the record high. Yay more climate variability.

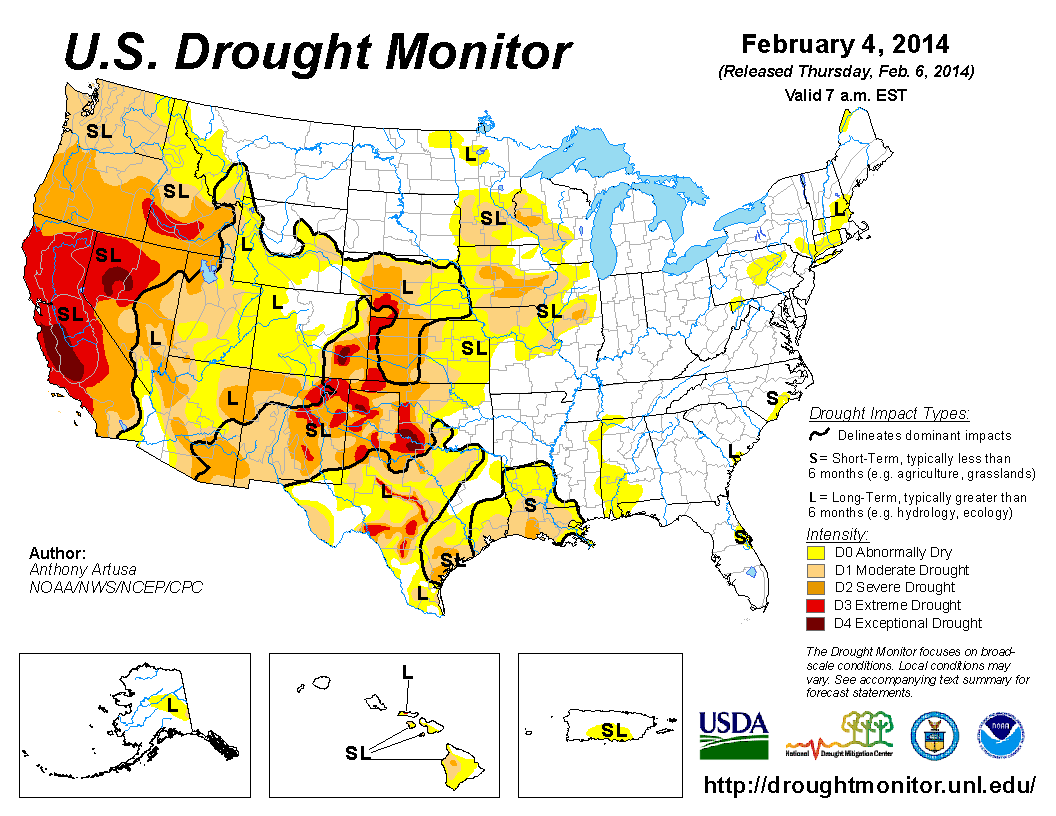

Drought in the US. Much of the west coast is short of water.

Drought in the US. Much of the west coast is short of water.

In addition to weather variability, some trends will be more pronounced. Dry seasons will be more dry and last longer. Rainy seasons will have more intense storms. This can be a problem, cause droughts prevent agriculture from working.

Which leads to:

Increases in Floods and Droughts - 2/5

There are floods called 100-year floods, cause they should only happen once every 100 years. Areas of Australia had two 100-year floods in a decade. This is because climate change will make large weather events, like floods and droughts, a lot more frequent.

Torrential rains flood Australia pretty frequently these days. Expect more of this in many parts of the world as climate change takes hold.

Melting Glaciers 4/5 (I hang out with the world experts on this all the time, cause they are cool)

Did you know that everything with mass exerts a gravitational force. Yes, hard to believe, but it is true! And it turns out that mountains and glaciers exert a sideways gravitational force. One that is strong enough to pull water from the oceans towards them. In other words, if the Greenland ice sheet melts, the sea level Greenland would actually drop. And the sea level around India, Africa, and South America would rise a more than you would expect. So instead of seeing 7m of sea level rise from all of Greenland melting, they might see 8m. In other words, all the poor countries that didn't put the GHGs in the atmosphere, and also cannot afford to prepare for the rise, will take the brunt of this one.

Disease - 1/5

Many people predict that certain diseases will become more rampant. Like how trees are getting destroyed all over California, because certain tree-eating bacterias and insects can survive in the slightly warmer weather. More trees and plants will die, yes. The disease part is a bit questionable how it will work. Diseases of many times will shift where they work, but it won't necessarily expand it. But just think about how much fun most of my readers (predominantly American) will have if Malaria creeps north into a bunch of our states. Overall, though, the jury is still out on this one.

Food Production difficulties - 2/5

Many staple grains, like corn and wheat, won't grow as easily if the temperature rises even 2 or 3 C. The world food supply could easily run short, especially with the combination of increasing population from 7 to 9 billion over the next 40 years or so, and the fact that as much of the world gets wealthier, they want more meat. Why is the meat thing an issue? It takes about 40 lbs. of grains and such to make 1 lbs. of cow meat. For pigs, it is much better, with a ratio of about 8. Cause pigs are excellent at turning calories into food for us. Yet another reason to like bacon, eh?

Anyways, food supplies will become more strained. It could be a very serious issue. People might fight over it. By people, I mean countries.

Also interesting, I sometimes brew beer with a guy who is one of the experts on this.

Wrapping up

I have only touched on a few things here. As more come up, I will update this post and tell people to check it out. Before leaving, let's review some of this stuff.

Wealthy countries by and large have pushed a ton of greenhouse gases into the atmosphere. It is causing climate change. Because of how gravity and glaciers work, climate change is going to effect predominantly Southern hemisphere countries. In other words, South America, Africa, areas around India, etc. Pretty much, it is going to have a more profound effect on the countries that can't afford to build walls around their cities to hold back water, and can't throw money and science at the problems as easily. Climate change already punishes poor countries cause they cannot afford to deal with the changes, but the melting glaciers problem exacerbates their situation.

One great example: If emissions of greenhouse gases are not somewhat arrested and sea level rises 1m, at least 17 million people in Bangladesh will find themselves inundated. Where are they going to go? They are surrounded by an ocean, India, Burma, and a whole slew of mountains called the Tibetan Plateau (think Himalayan mountains). India doesn't want them, they are already crowded. Burma is rather hostile. Sending 17 million climate refugees anywhere is likely to cause a problem. And that is just one country.

Hokay, that was depressing to write. To end on a cheery note, climate change will make the weather in both Canada and Siberia much nicer. Also, when the ice caps melt in the Arctic, international trade will have all new sorts of inexpensive ways to move around! This will prove useful.

Oh, one the thing.

The Arctic has a ton of resources that can be mined / produced. So when that ice melts, there will be a wealth a resources. And probably a lot of fighting over said resources.

Thanks for reading!

- Jason Munster

Climate Change

So here it is. The post on how climate change works. Today, we return to Math!

*added later: thanks to the friends who noticed typos and order of magnitude errors, and prompted me to correct them

** Comments section has been opened up.

Climate Change

Some people say that the amount of CO2 in the atmosphere is so small that it couldn't possibly do anything. They say this because if you take one million random molecules in the atmosphere, only 400 of them are CO2. Seen another way, oxygen is 21% of the atmosphere, and CO2 is .04% (It was .028% before we got started playing with things. So we raised the % of CO2 by .01)

People who believe a small perturbation cannot change a complex system are in denial. Complex systems, like the climate or our bodies, respond to some inputs very strongly. As dumb as this comparison is, lets consider a poison introduced to your body. Let's say you weigh 50kg (a little more than 100 lbs). 0.01% (this is how much we changed CO2 by) of your body weight is .005kg, or 5000mg. A lethal dose of cyanide in a human is about 1.5mg per kg of weight. For a 50kg person, this is of 75mg. 5000mg of cyanide would be overkill.

It may seem drastic to compare CO2 in the atmosphere to cyanide in the body. One causes warming in the atmosphere (at least scientists argue that), the other causes death of a single person. It may actually be somewhat an apt comparison. Without warming caused by greenhouse gases, life as we know it would not exist on Earth.

Maths!

Here I will show that without greenhouse gases, the Earth would be a frozen wasteland. CO2 and other gases trap heat, more or less preventing heat given off from the Earth from escaping by reflecting back on itself.

The heat on the Earth's surface and in its atmosphere has one major input, and one major output. The input is solar energy (we call it solar radiation. Not the same type of radiation that uranium has when it goes through a radioactive decay.). The output is radiation that the Earth gives off. As the Earth heats up, it gives off more radiation. The output of heat from the Earth needs to match the input of heat from the sun, otherwise it heats up or cools off. If the output of heat drops and the input of heat remains the same (say, for instance, that greenhouse gases prevent output of heat by trapping some of it), then the planet will retain heat until it is so warm that it gives off enough energy to again have an output that is equal to the input.

Schematic of how greenhouse gases trap and reflect heat from the Earth, preventing it from being released once it is absorbed.

Let's start from the basics, the energy emitted from the sun. If you want to take my word for this, you can skip to earth temperature calculation part

The energy emitted by the sun is based on its surface temperature. In fact, it is the surface temperature related to the 4th power (the reasons for this lie in quantum mechanics. If you are feeling smart, brave, or arrogant about your smarts, follow that link to find out why it is T^4).

Our sun puts out energy in many different wavelengths

 E_s = 4 \pi R^2_s \sigma T^4_s

Here, R is the radius of the sun,  7 \cdot 10^8 m and  \sigma is the stefan-boltzmann constant used specifically for blackbody radiation:  5.67 \cdot 10^{-8} W m^{-1} K^{-4} . The surface temperature of the sun is 5800K.

So this is how much energy is emitted in total by the sun:

 4 \cdot \pi (7 \cdot 10^8 m)^2 \cdot (5800K)^4 \cdot 5.67 \cdot 10^{-8} W m^{-1} K^{-4} = 3.95 \cdot 10^{26} W emitted by the sun.

What fraction of this hits Earth? Let's call is F_s for flux of energy to the surface of the Earth.

F_s = \frac{E_s}{4 \pi d^2} where d is the distance between the sun and Earth( 1.5 \cdot 10^{11}m )

 F_s = \frac{3.95 \cdot 10^{26} W}{4 \pi (1.5 \cdot 10^11 m)^2} = 1397 \frac{W}{m^2}

Satellite observations show the actual value is closer to 1370. So our very basic theory shows us correct within 1.5%. So far so good, as far as this basic math model goes.

So, at the equator, we get 1370 watts for every square meter of land. As you move poleward, this amount decreases by roughly a factor of cosine.

Earth's Temperature

Hokay, so before we had an equation with \sigma T^4 in it. We can get Earth's equilibrium temperature by doing all this process in reverse. One important thing to consider: not all of this light reaches the ground. A lot is reflected. White snow, for instance, reflects about 90% of light. Water absorbs about 90% of light. The factor of reflection is called albedo (we will call this A in our equations). Overall, the current albedo for Earth is about .28. In other words, 28% of light is reflected back to space.

This is kinda how albedo works

Hokay, so light hits the Earth. It hits 1/2 of the Earth, which is a globe. So the light lands on the surface, which for a globe is roughly a circle. A circle with the radius of the Earth, R_e

So the mean solar radiation absorbed by the Earth is:

F_s \pi R^2_e (1-A) / 4 pi R^2_e = F_s (1-A)/4

We can approximate the black-body temperature of the Earth to be equal to this. So

F_s (1-A)/4 = \sigma T^4_e where T_e is the temperature of the Earth

T_e = (\frac{F_s (1-A)}{4 \sigma}) ^{\frac{1}{4}}

substitute numbers in:

 (1370 Wm^{-2} \cdot .72 / (4 \cdot 5.67 \cdot 10^{-8} Wm^{-2}K^{-4})^{\frac{1}{4}} = 256 K

Note, Kelvin is just celsius temperature, except 0 kelvin is absolute zero, the coldest possible temperature in our universe. 0 kelvin is roughly -273 C. So 256 K is 17 degrees below 0C. Let me emphasize that.

From a strict radiative standpoint, the surface temperature of the Earth should be at the very warmest 17 degrees celsius below freezing.

Did we do something wrong? Nope. We forgot one very important factor. Greenhouse gases trap heat. Without CO2 and methane and water (yes, water traps heat) in our atmosphere, the Earth would be frozen solid, and there would be no life, at least not on the surface. Even the oceans would be frozen over.

How greenhouse gases absorb and trap heat

A CO2 molecule has a C in the center and two oxygens hanging off it. When light of a certain wavelength hits it, those two oxygens start vibrating faster and get excited. Which means the light was absorbed and converted to heat. It turns out that the temperature of the Earth is such that the bulk of light it emits is a wavelength that things like CO2 and H2O and CH4 can absorb. They are heated up. If this happens all over the place, the entire atmosphere heats up. And then, since everything emits light based on its heat, the CO2 molecules release some of this energy as light, again in infrared, and it has a chance of being re-absorbed by another molecule. Eventually some of these photons (the light energy) escape the Earth.

So, now we have to change our equilibrium temperature equation to have a greenhouse forcing:

T_e = (\frac{F_s (1-A)}{4 \sigma} (1-f)) ^{\frac{1}{4}} where f is the greenhouse forcing factor.

I am not going to run through this, cause everyone gets my point. Going back to our analogy, these tiny amounts of CO2 and other gases in the atmosphere make our planet livable by increasing the temperature. And the more we pump into the atmosphere, the more the atmosphere and surface of the Earth will heat up. In short, climate change is real, and it is caused by people.

Here we have CO2 concentrations over the past 400,000 years plotted against temperature. These can be derived with reasonably accuracy directly from air bubbles in ice cores that are up to 700,000 years old, or inferred from isotope ratios of oxygen (another story, another time)

Here is more recent data, with direct measurements. Yes, the axes are scaled to make the correlation stand out. The point is that the correlation between rising CO2 and temperature exists. CO2 goes up, then temperature goes up.

Here is more recent data, with direct measurements. Yes, the axes are scaled to make the correlation stand out. The point is that the correlation between rising CO2 and temperature exists. CO2 goes up, then temperature goes up.

At this point, it should be clear how important CO2 and other greenhouse gases are, and how changing GHGs by a small amount can make some pretty big changes in the complex Earth system. These conclusions are rooted in science. It's the same science that makes cars work. Anyone who believe in cars should also believe in GHGs causing climate change.

Some effects of climate change

We all have heard of sea level rise. Most people think the primary cause of all the sea level rise we have seen over the last century (about an inch every 15 years) is melting glaciers. This is untrue for most of the sea level rise of the last century. What causes it, then? Water is most dense at 4 degrees celsius. If it moves in either direction away from this, it begins to expand (as ice in one direction, as water in the other). Thermal expansion of water has caused much of the sea level rise we have seen.

Sea ice melting doesn't raise sea level at all. Because the ice contracts when it becomes water. In short, sea ice doesn't displace water. Those melting arctic ice caps aren't going to change the sea level much from melting alone* (we will get back to this later).

Melting glaciers, on the other hand, will make a difference in the future. That is water that has been removed from the ocean and placed on mountains. When it comes off those mountains, it flows to the ocean. It is estimated that the Greenland ice sheet has about 7m of sea level rise worth of water, or about 20 feet. Most of Florida would be gone in this case. NYC, Shanghai, many European cities, Vancouver, DC, Boston, etc., will be underwater. No one really knows what timescale this melting will occur at. We will cover this more in depth in another article. These may have already started to go. The average annual sea level rise for most of last century was about 1.7mm/year. In the past decade, it has doubled to about 3.4mm a year. The Greenland ice sheet has definitely been melting in recent years. It is unclear how fast this will unfold. More on that later.

*Melting Arctic ice: remember when I said that snow reflects 90% of light energy, and water absorbs 90%? What happens when we melt ice caps, then? More of the light that hits that area will be absorbed. So let's recap here. The Earth heats up. The ice caps melt, exposing water, which absorbs more light, making the Earth heat up more. This is what you call a positive feedback mechanism. It is not "positive" in that it good. Positive means that it has an accelerating effect. Normal people call this a self-perpetuating cycle. Some people call it a "vicious cycle." But we are going to call it a positive feedback mechanism, and know that in this case, it is a bad thing.

** A colleague mentioned that I should also talk about the water vapor feedback, since it is often a tool used by climate skeptics. Water vapor is a very strong greenhouse gas. When the temperature rises, more water vapor goes into the atmosphere, which can in turn raise temperature more. It sounds like a permanent positive feedback mechanism, but it has stark limits if it acts alone. But when you put CO2 into the atmosphere, it causes warming, and then causes more water vapor. In this case, we can say that water vapor amplifies CO2 greenhouse forcing. Again, the additional water vapor warming from CO2 atmospheric load increase is limited, but NASA and later studies show that in some places, the effect of water vapor can amplify the greenhouse forcing of CO2 by a factor of 2. While the theory is not perfectly understood, the observations (areas with high water vs. low water, accounting for all other types of forcing) are very good.

And now we have exceeded 2000 words.

-Jason Munster
